Grades：304、304L、316、316L、309、201Cu、430、 etc
Performance: Good flexibility, good corrosion resistance, fine smooth surface and good formability.
Physical properties of stainless steel soft wire:
|
mm Dia. |
N/mm2 T/S |
EL % |
|
0.05-0.10 |
650-900 |
>15 |
|
0.10-030 |
640-880 |
>20 |
|
0.30-0.60 |
590-860 |
>30 |
|
0.60-1.60 |
540-820 |
>30 |
|
1.60-5.00 |
520-770 |
>30 |
|

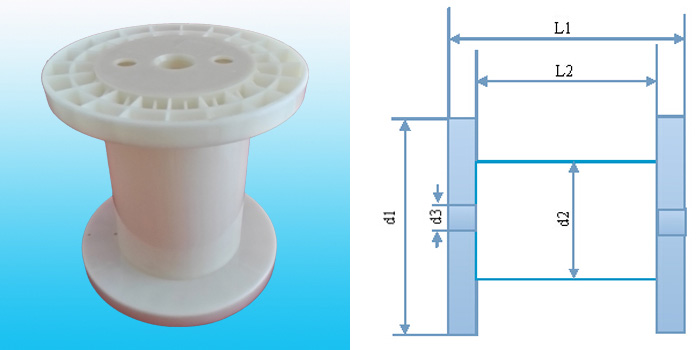

No. |
Spool Model |
Outer Diameter |
Trunk |
Inner |
Inner Height(L2) |
Total height |
Weight of Spool |
Rated load weight |
|
1 |
DIN 125 |
125mm |
65mm |
20-25mm |
100mm |
120mm |
0.18kg |
2-3kg |
|
2 |
DIN 160 |
160mm |
99.3mm |
22.03mm |
129mm |
160mm |
0.3kg |
5-7kg |
|
3 |
DIN 200 |
200mm |
125.31mm |
23.06mm |
160mm |
200mm |
0.62-0.66kg |
10-15kg |
|
4 |
DIN 250 |
250mm |
160mm |
20.73mm |
160mm |
200mm |
1kg |
20-25kg |
|
5 |
NS-4 |
118.83mm |
75.4mm |
21.27mm |
129.33mm |
148.14mm |
|
2-3kg |
CHEMICAL PROPERTIES
|
Chemical Properties of Frequently-used Stainless Steel Material Grade |
|||||||||||
|
UNS |
ASTM |
EN |
JIS |
C% |
Mn% |
P% |
S% |
Si% |
Cr% |
Ni% |
Mo% |
|
S20100 |
201 |
1.4372 |
SUS201 |
≤0.15 |
5.5-7.5 |
≤0.06 |
≤0.03 |
≤1.00 |
16.0-18.0 |
3.5-5.5 |
- |
|
S20200 |
202 |
1.4373 |
SUS202 |
≤0.15 |
7.5-10.0 |
≤0.06 |
≤0.03 |
≤1.00 |
17.0-19.0 |
4.0-6.0 |
- |
|
S30100 |
301 |
1.4319 |
SUS301 |
≤0.15 |
≤2.00 |
≤0.045 |
≤0.03 |
≤1.00 |
16.0-18.0 |
6.0-8.0 |
- |
|
S30400 |
304 |
1.4301 |
SUS304 |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
18.0-20.0 |
8.0-10.5 |
- |
|
S30403 |
304L |
1.4306 |
SUS304L |
≤0.03 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
18.0-20.0 |
8.0-12.0 |
- |
|
S30908 |
309S |
1.4833 |
SUS309S |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
22.0-24.0 |
12.0-15.0 |
- |
|
S31008 |
310S |
1.4845 |
SUS310S |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.03 |
≤1.50 |
24.0-26.0 |
19.0-22.0 |
- |
|
S31600 |
316 |
1.4401 |
SUS316 |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
S31603 |
316L |
1.4404 |
SUS316L |
≤0.03 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
S31703 |
317L |
1.4438 |
SUS317L |
≤0.03 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
18.0-20.0 |
11.0-15.0 |
3.0-4.0 |
|
S32100 |
321 |
1.4541 |
SUS321 |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
17.0-19.0 |
9.0-12.0 |
- |
|
S34700 |
347 |
1.4550 |
SUS347 |
≤0.08 |
≤2.00 |
≤0.045 |
≤0.03 |
≤0.75 |
17.0-19.0 |
9.0-13.0 |
- |
|
S40500 |
405 |
1.4002 |
SUS405 |
≤0.08 |
≤1.00 |
≤0.04 |
≤0.03 |
≤1.00 |
11.5-14.5 |
≤0.60 |
- |
|
S40900 |
409 |
1.4512 |
SUS409 |
≤0.08 |
≤1.00 |
≤0.045 |
≤0.03 |
≤1.00 |
10.5-11.75 |
≤0.50 |
- |
|
S43000 |
430 |
1.4016 |
SUS430 |
≤0.12 |
≤1.00 |
≤0.040 |
≤0.03 |
≤0.75 |
16.0-18.0 |
≤0.60 |
- |
|
S43400 |
434 |
1.4113 |
SUS434 |
≤0.12 |
≤1.00 |
≤0.040 |
≤0.03 |
≤1.00 |
16.0-18.0 |
- |
- |
|
S44400 |
444 |
1.4521 |
SUS444L |
≤0.025 |
≤1.00 |
≤0.045 |
≤0.03 |
≤1.00 |
17.5-19.5 |
≤1.00 |
- |
|
S40300 |
403 |
- |
SUS403 |
≤0.15 |
5.5-7.5 |
≤0.04 |
≤0.03 |
≤0.50 |
11.5-13.0 |
≤0.60 |
- |
|
S410000 |
410 |
1.40006 |
SUS410 |
≤0.15 |
≤1.00 |
≤0.035 |
≤0.03 |
≤1.00 |
11.5-13.5 |
≤0.60 |
≤1.00 |
|
S42000 |
420 |
1.4021 |
SUS420J1 |
0.16~0.25 |
≤1.00 |
≤0.04 |
≤0.03 |
≤1.00 |
12.0-14.0 |
≤0.75 |
≤1.00 |
|
S440A |
440A |
1.4028 |
SUS440A |
0.60~0.75 |
≤1.00 |
≤0.04 |
≤0.03 |
≤1.00 |
16.0-18.0 |
- |
≤0.75 |
|
S32750 |
SAD2507 |
1.4410 |
≤0.03 |
≤1.2 |
≤0.035 |
≤0.02 |
≤0.80 |
24.0-26.0 |
6.0-8.0 |
3.0-5.0 |
|
|
S31803 |
SAF2205 |
1.4462 |
≤0.03 |
≤2.0 |
≤0.03 |
≤0.02 |
≤1.00 |
21.0-23.0 |
4.0-6.5 |
2.5-3.5 |
|
|
N08904 |
904L |
1.4539 |
≤0.0.3 |
≤2.0 |
≤0.035 |
≤0.03 |
≤1.00 |
18.0-20.0 |
23.0-25.0 |
3.0-4.0 |
|
